Generates a publication-ready hexagon sticker for an R package. Returns a ggplot object that can be printed, further customised with +, or saved with save_hex().

Usage

hex_sticker(
  name = "package",
  subtitle = NULL,
  url = NULL,
  icon = NULL,
  icon_image = NULL,
  icon_size = 1,
  theme = "stats",
  mode = "dark",
  bg = NULL,
  accent = NULL,
  text_color = NULL,
  border_color = NULL,
  sub_color = NULL,
  font_family = "mono",
  font_bold = TRUE,
  font_italic = FALSE,
  font_size = 12,
  border_width = 2,
  inner_border = TRUE,
  filename = NULL,
  width = 600,
  dpi = 300
)

Arguments

name

Character. The package name displayed on the sticker.

subtitle

Character or NULL. Optional subtitle shown below the package name.

url

Character or NULL. Optional URL shown near the bottom of the sticker.

icon

Character or NULL. Name of a built-in icon. See hexmakr_icons() for valid values. Ignored if icon_image is provided.

icon_image

Character or NULL. Path to a custom image file (PNG or JPEG). If provided, overrides icon and retains the image proportions. Images must be at most 10 MiB, 8192 pixels per side and 16 million pixels in total. Invalid or oversized images report an error before rendering.

icon_size

Numeric. Size multiplier for the icon (default 1.0).

theme

Character. Theme name. One of names(hexmakr_themes()). The nine CTTIR v5 families (for example "spatial" or "clinical") are listed first and are the house standard; for complete v5 artwork use hex_design(). Default "stats".

mode

Character. Colour mode, either "dark" (default) or "light".

bg

Character or NULL. Override the background colour (hex string, e.g. "#1B2838").

accent

Character or NULL. Override the accent colour.

text_color

Character or NULL. Override the text colour.

border_color

Character or NULL. Override the border colour.

sub_color

Character or NULL. Override the subtitle/URL colour.

font_family

Character. Font shorthand (e.g. "mono", "serif", "sans") or a system font name. Default "mono". "jetbrains_mono" uses the JetBrains Mono font bundled for CTTIR v5 names, drawn as glyph outlines so it needs no installed font (bold uses the semibold cut; italic is slanted). Unsupported bundled-font characters report an error.

font_bold

Logical. Use bold weight. Default TRUE.

font_italic

Logical. Use italic style. Default FALSE.

font_size

Numeric. Base font size in pt for the package name. Default 12.

border_width

Numeric. Border line width in mm. Default 2.

inner_border

Logical. Draw a thin inner accent ring. Default TRUE.

filename

Character or NULL. If provided, save the sticker as a transparent PNG at this path using save_hex().

width

Integer. Export width in pixels (height is derived from the hex aspect ratio). Default 600.

dpi

Numeric. Resolution for PNG export. Default 300.

Value

A ggplot object (invisibly if filename is not NULL).

Details

Create a hex sticker

Examples

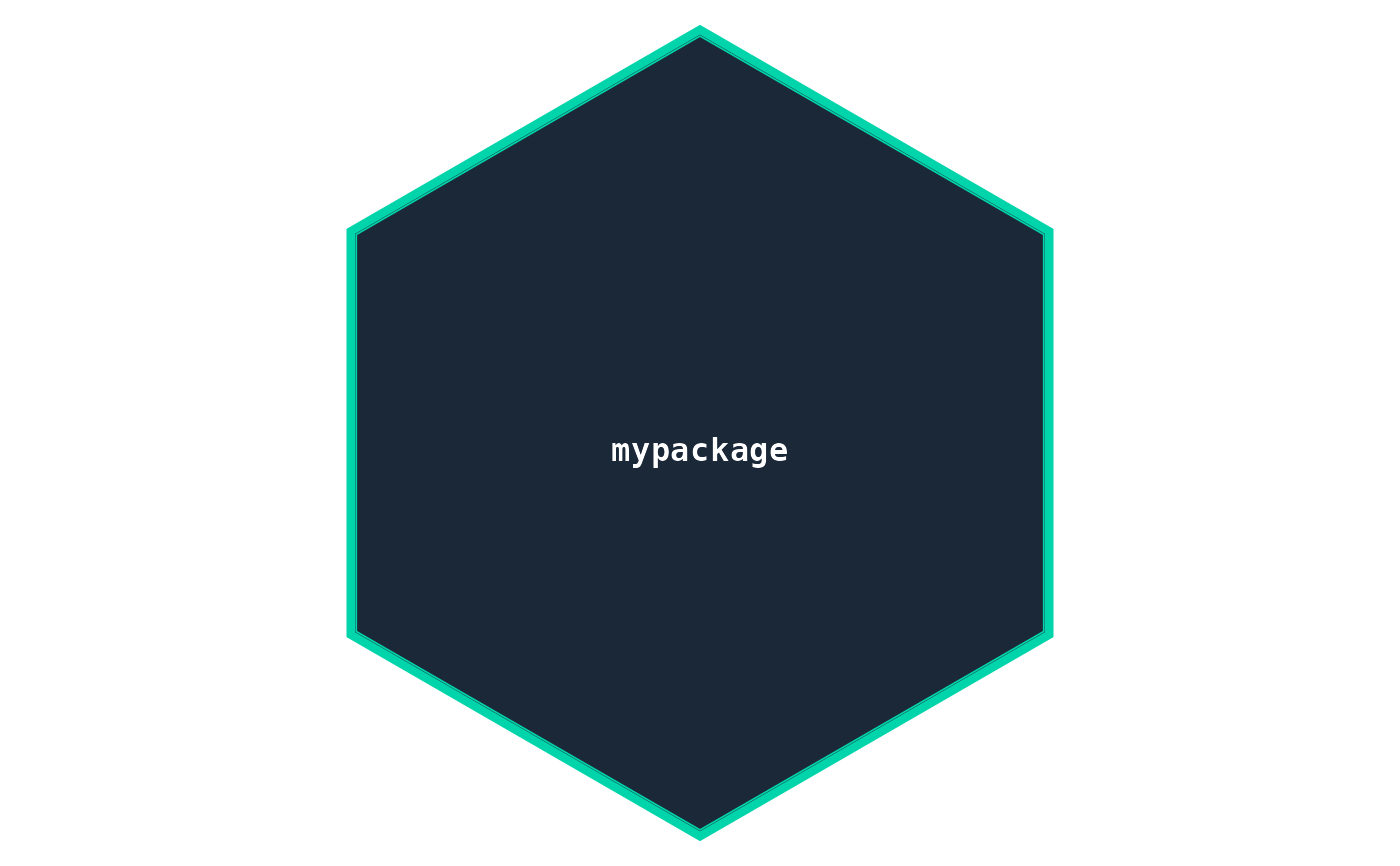

# Minimal sticker
hex_sticker("mypackage")

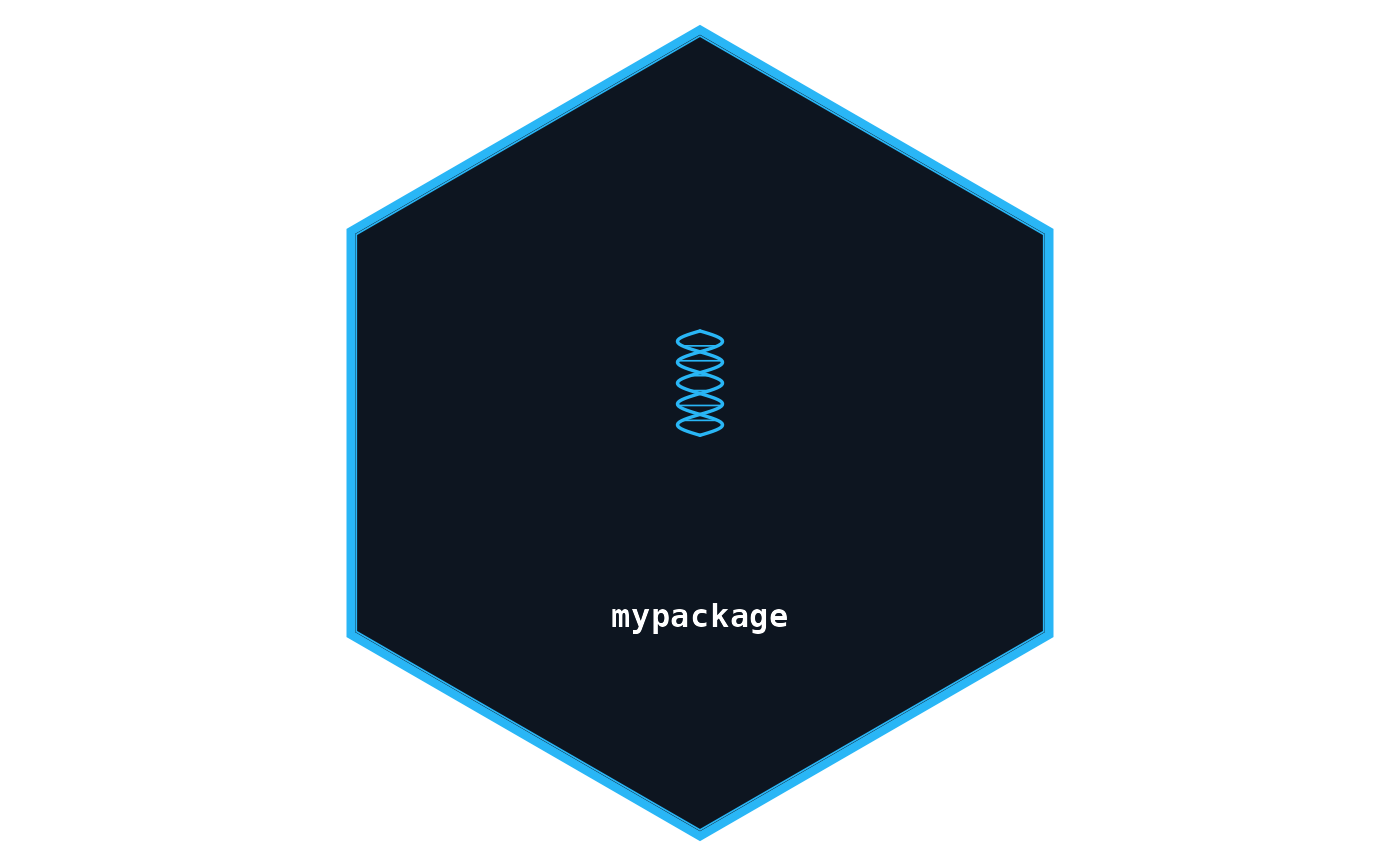

# With icon and theme
hex_sticker("mypackage", icon = "dna", theme = "genomics")


# CTTIR v5 family colours and the bundled v5 name font
hex_sticker("mypackage", icon = "microscope", theme = "spatial",
            font_family = "jetbrains_mono")


# Save to file
tmp <- tempfile(fileext = ".png")
hex_sticker("mypackage", icon = "atom", theme = "stats", filename = tmp)
file.exists(tmp)
#> [1] TRUE
