An experimental descriptive image of the nonnegative RMS magnitude of the wavelength derivative of each pixel's piecewise-linear spectrum.

Usage

hsa_spectral_gradient(
  cube,
  palette = "inferno",
  stretch = c("percentile", "range", "none"),
  probs = c(0.02, 0.98),
  display_limits = c(0, 1),
  value_label = "input value",
  interpolate = TRUE
)

Arguments

cube

An hsi_cube (from hyperspectR) or a 3-D array with dimensions (rows, cols, bands), of integer or double values. Optional wavelengths metadata must be a numeric vector, finite, unique and strictly increasing in nm. Without it, coordinates are band indices. An optional logical spatial mask has dimensions (rows, cols) and no missing entries; FALSE excludes a pixel. Arrays may carry these as attributes; an hsi_cube may carry them as exactly named list fields. Dimension names do not alter spatial sizes. Nonfinite observations are excluded.

palette

Palette name passed to hsa_palette().

stretch

Contrast stretch: "percentile" (default), "range" or "none".

probs

Percentiles for stretch = "percentile". Default c(0.02, 0.98).

display_limits

Two increasing finite endpoints used as the fixed colour domain for stretch = "none". Default c(0, 1).

value_label

A truthful label for the input values. Default "input value". A reflectance label requires known upstream calibration; numeric range alone cannot establish calibration.

interpolate

Logical; interpolate raster pixels. Default TRUE.

Value

A ggplot object with raw values and original-rendering provenance.

Details

For interval widths h = diff(wavelengths) and endpoint span L, G = sqrt(sum(h * (diff(x)/h)^2)/L). Values have input-value units per nm. This is neither a signed derivative, a spatial gradient, nor uncertainty. Short intervals and measurement noise can dominate the result. Gaps in sampling bridge unresolved structure; no smoothing or noise correction is applied. Physical wavelength metadata in nm and at least two bands are required, with finite positive representable intervals and span. A masked or incomplete spectrum is transparent; missing bands are never bridged. Nonrepresentable requested arithmetic raises an error.

Examples

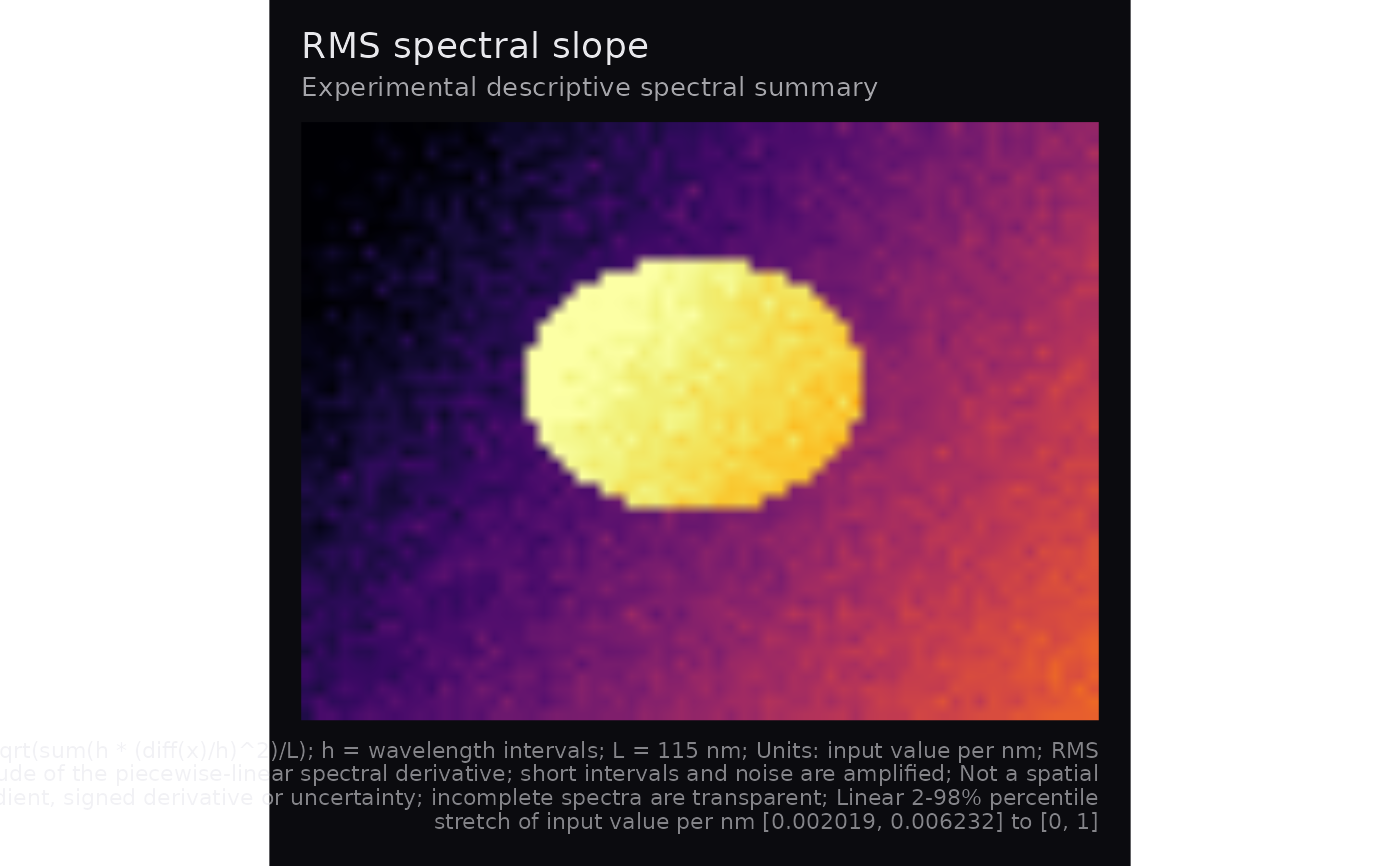

hsa_spectral_gradient(hsa_demo_cube())
