Plot a Calibration Curve

Usage

ls_plot_calibration(
  calibration,
  show_lod = TRUE,
  show_loq = TRUE,
  show_prediction_interval = TRUE
)

Arguments

calibration: A ls_calibration() object (univariate/internal_std).
show_lod: Logical. Show LOD as a horizontal dashed line. Default TRUE.
show_loq: Logical. Show LOQ as a horizontal dashed line. Default TRUE.
show_prediction_interval: Logical. Show 95% prediction band. Default TRUE.

Value

A ggplot2 object.

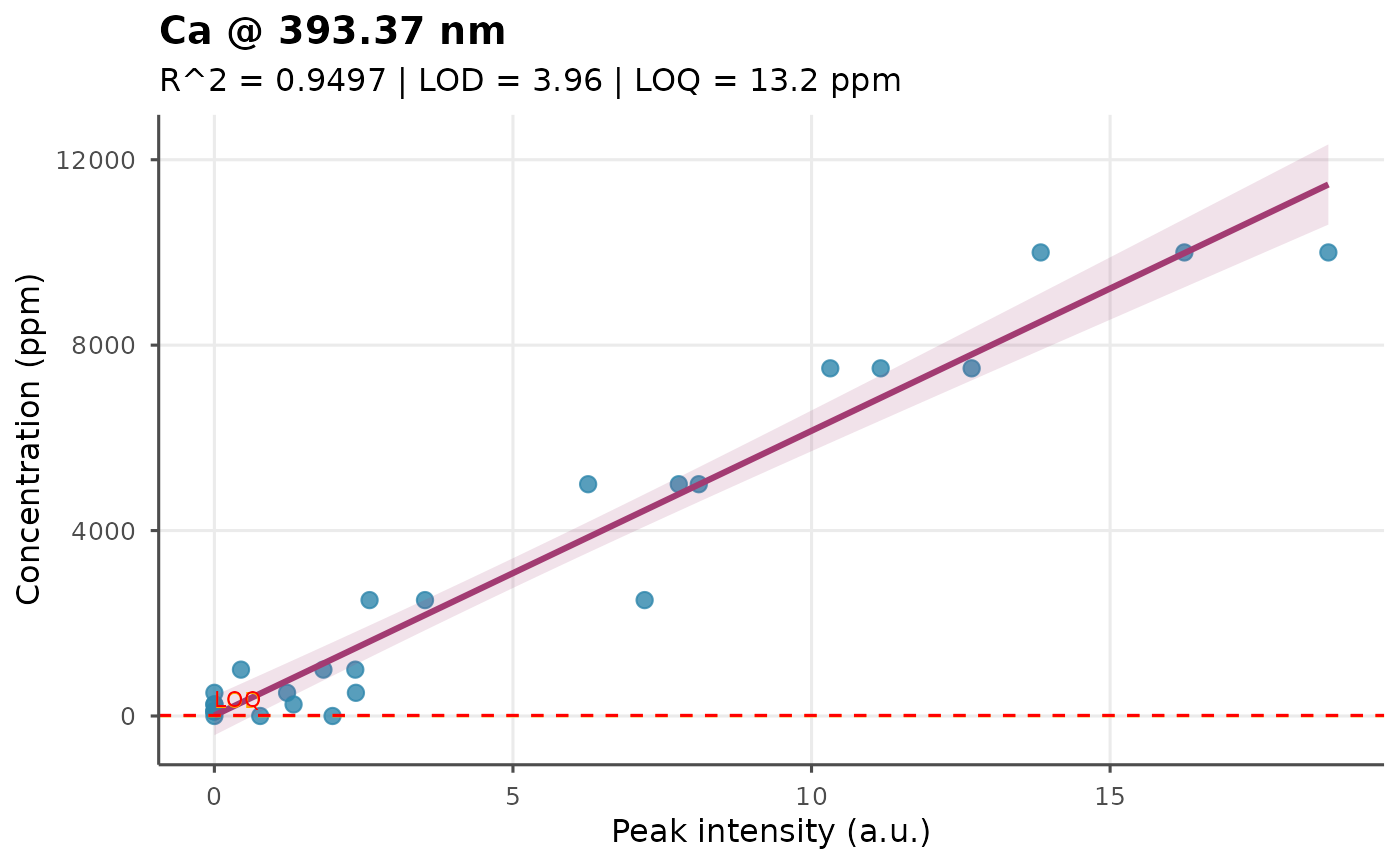

Examples

ds <- ls_example_data("calibration")
conc <- ds$sample_info$concentration
cal <- ls_calibrate(ds, "Ca", 393.37, conc, verbose = FALSE)
ls_plot_calibration(cal)
