Plot Pressure Heatmap with Region Overlay — pr_plot_heatmap

Convenience wrapper for pr_plot_heatmap() that always overlays region boundaries.

Usage

pr_plot_heatmap_masked(
  trial,
  masks = NULL,
  frame = NULL,
  type = c("mpp", "mvp", "pti", "contact"),
  palette = "viridis",
  range = NULL,
  title = NULL
)

Arguments

trial: A pr_trial object.
masks: Named list of pr_mask objects or logical matrices. If NULL, uses layout regions.
frame: Integer. Frame number to display. If NULL (default), shows the summary picture specified by type.
type: Character. Summary type when frame is NULL: "mpp" (max), "mvp" (mean), "pti" (pressure-time integral), "contact" (contact frequency).
palette: Character. One of "viridis" (default), "inferno", "plasma", "magma", "jet", "classic".
range: Numeric vector of length 2. Colour range. NULL auto-scales.
title: Character. Plot title. NULL auto-generates.

Value

A ggplot2 object.

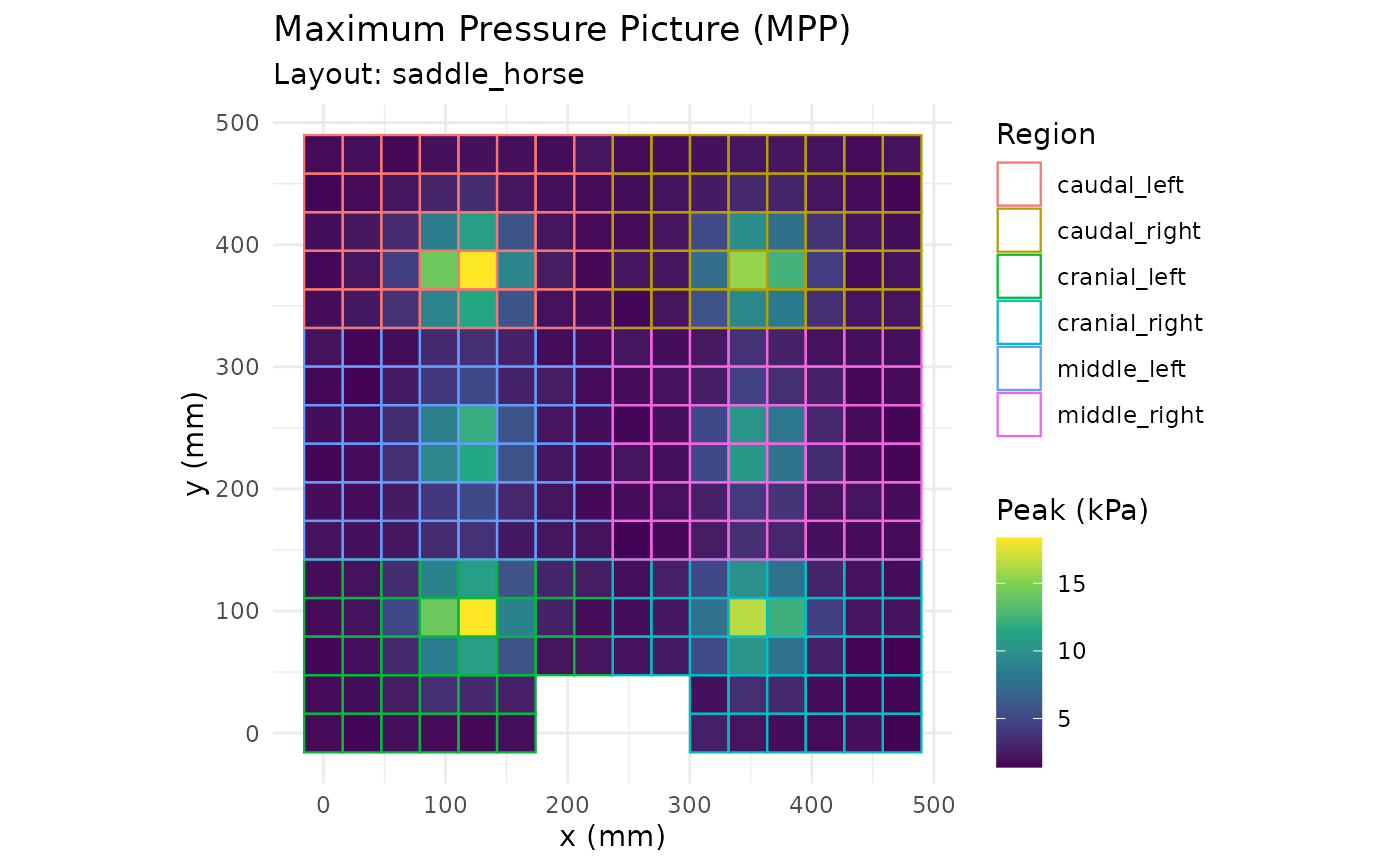

Examples

pr_plot_heatmap_masked(pr_example_trial("saddle_horse"))
