library(tidyverse)
library(uwot)
library(Rtsne)
set.seed(42)
theme_set(theme_minimal(base_size = 12))Week 1, Session 5 — UMAP and t-SNE
Course 4 — #courses
Note
Workflow labs use the variant template: Goal → Approach → Execution → Check → Report.
Learning objectives
- Compute UMAP and t-SNE embeddings and describe what each optimisation is doing.
- Interpret global vs local structure in a UMAP/t-SNE plot and avoid over-reading cluster distances.
- Tune
n_neighbors/perplexityand see the visual effect.
Prerequisites
PCA from Session 3; basic notion of neighbour graphs.
Background
UMAP and t-SNE are nonlinear embedding methods widely used in single-cell and imaging biomedicine. Both build a neighbour graph in high dimensions and then try to match a lower-dimensional graph with similar neighbour structure. They are not clustering algorithms, and distances in the embedding are not Euclidean distances in the original space. The prominent visual clusters in a UMAP often exist in the data, but the distance between clusters is close to meaningless and the density inside a cluster is not comparable across clusters.
t-SNE emphasises local structure; UMAP, with default settings, is a little more faithful to global structure but can still distort. Both have knobs — perplexity for t-SNE, n_neighbors and min_dist for UMAP — that change the resulting picture substantially. A reviewer who sees only one embedding has no way to tell if the picture is a stable feature of the data or an artefact of the settings.
Treat UMAP/t-SNE as a visualisation of neighbourhood structure, not as a geometric truth. Do not run statistical tests on the coordinates. Do not claim a trajectory unless you used a trajectory method.
Setup
1. Goal
Embed a simulated high-dimensional dataset with three blobs into two dimensions using UMAP and t-SNE, and compare against PCA.
2. Approach
make_blob <- function(n, mu, sd = 1, d = 20) matrix(rnorm(n * d, 0, sd), n, d) +
rep(mu, each = n)
X <- rbind(
make_blob(100, c(0, 0, rep(0, 18))),
make_blob(100, c(4, 0, rep(0, 18))),
make_blob(100, c(0, 4, rep(0, 18)))
)

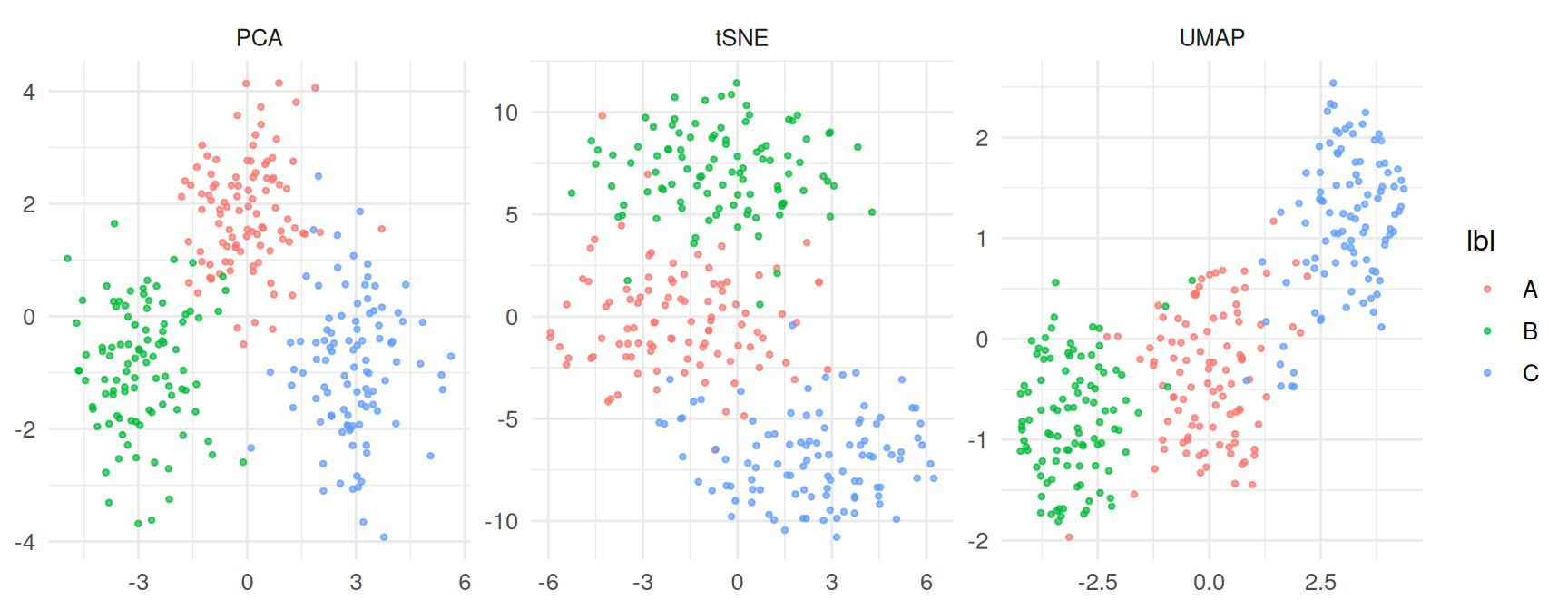

lbl <- rep(c("A", "B", "C"), each = 100)3. Execution
emb_pca <- prcomp(X)$x[, 1:2]
emb_umap <- umap(X, n_neighbors = 15, min_dist = 0.1)
emb_tsne <- Rtsne(X, perplexity = 30, check_duplicates = FALSE)$Y
df <- bind_rows(
tibble(method = "PCA", x = emb_pca[, 1], y = emb_pca[, 2], lbl = lbl),
tibble(method = "UMAP", x = emb_umap[, 1], y = emb_umap[, 2], lbl = lbl),
tibble(method = "tSNE", x = emb_tsne[, 1], y = emb_tsne[, 2], lbl = lbl)
)
ggplot(df, aes(x, y, colour = lbl)) +
geom_point(alpha = 0.7, size = 0.8) +
facet_wrap(~ method, scales = "free") +
labs(x = NULL, y = NULL)
4. Check

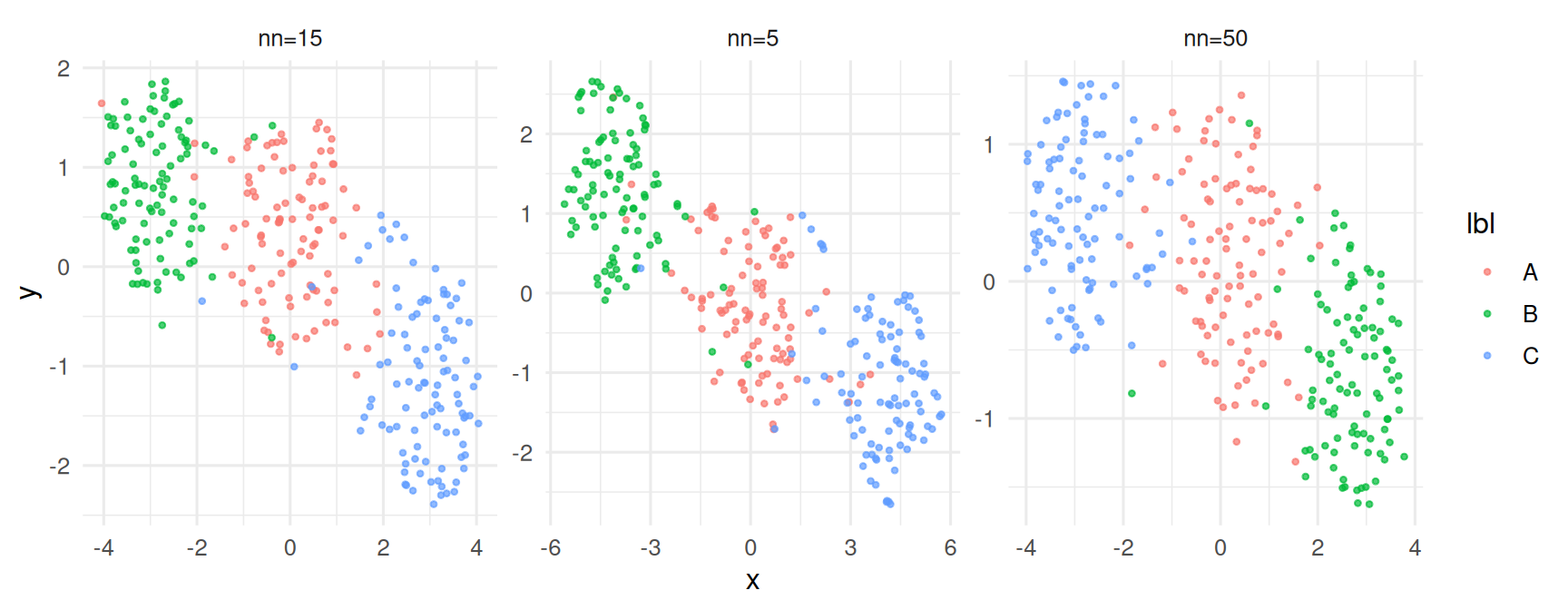

Sensitivity to n_neighbors.
do_umap <- function(k) {
e <- umap(X, n_neighbors = k, min_dist = 0.1)
tibble(x = e[, 1], y = e[, 2], lbl = lbl, k = paste0("nn=", k))
}
bind_rows(do_umap(5), do_umap(15), do_umap(50)) |>
ggplot(aes(x, y, colour = lbl)) + geom_point(alpha = 0.7, size = 0.8) +
facet_wrap(~ k, scales = "free")
5. Report
Both UMAP and t-SNE recovered the three simulated blobs as distinct visual clusters; PCA separated them more weakly because the signal lay along two of 20 dimensions. UMAP embeddings with
n_neighbors∈ {5, 15, 50} all identified the same three groups but differed substantially in their relative layout.
The message is not which method is best, but that the embedding is best used as a visual companion, with another method — clustering, classification, or differential analysis — doing the statistical work.
If time, show that shuffling point identities within a blob leaves the UMAP essentially unchanged; the picture is about neighbour structure, not exchangeable labels.
Common pitfalls
- Reading distances between clusters off a UMAP as if they were biological distances.
- Running one embedding with defaults and treating the result as the data.
- Using UMAP coordinates as features in a downstream supervised model.
Further reading
- McInnes L, Healy J, Melville J (2018), UMAP: Uniform manifold approximation and projection.
- Kobak D, Berens P (2019), The art of using t-SNE for single-cell transcriptomics.
