Week 1, Session 2 — R, RStudio, Quarto, and renv toolchain

Course 1 — #courses

Author

R. Heller

Note

Workflow labs use the variant template: Goal → Approach → Execution → Check → Report.

Learning objectives

Describe the role of R, RStudio, Quarto, and renv in a reproducible analysis toolchain.
Initialise a project that a collaborator can clone and run without guesswork.
Produce a rendered Quarto document from an R chunk that draws on a pinned package environment.

Prerequisites

R, RStudio, and Quarto installed (see Get started).

Background

A statistical analysis is only as trustworthy as the environment that produced it. A result that depends on the version of a package, the operating system of the analyst, or an undocumented installation step cannot be confidently rerun by anyone else — including the analyst six months later. The job of the toolchain is to make the set of dependencies explicit and easy to restore.

R provides the language; RStudio provides an integrated environment that keeps project files, editor, console, and version control in one place; Quarto renders source documents into articles, slides, and reports while interleaving text and executable code. The last piece, renv, pins package versions to a lockfile that lives with the project. Together these give you a project that is self-contained, rebuildable on another machine, and testable against changes in its own dependencies.

Beginners often think of reproducibility as a requirement imposed by journals. The real payoff is more selfish: a colleague can pick up a project without you having to answer questions, a revision cycle does not force you to reconstruct the environment you used six months ago, and a silent upgrade of a package does not break a graph you no longer remember how to draw.

Setup

library(tidyverse)
set.seed(42)
theme_set(theme_minimal(base_size = 12))

1. Goal

Stand up a minimal reproducible R project and demonstrate the commands that keep it reproducible: version reporting, environment snapshotting, and rendering.

2. Approach

A reproducible project has four minimum ingredients: a working directory, a package lockfile, a document that can be re-rendered, and a record of the R session. In this lab we simulate a tiny dataset, draw a figure from it, and record the environment used to produce both.

lab <- tibble(
  subject = seq_len(30),
  group   = rep(c("A", "B"), each = 15),
  value   = c(rnorm(15, mean = 10, sd = 2),
              rnorm(15, mean = 12, sd = 2))
)
lab

# A tibble: 30 × 3
   subject group value
     <int> <chr> <dbl>
 1       1 A     12.7
 2       2 A      8.87
 3       3 A     10.7
 4       4 A     11.3
 5       5 A     10.8
 6       6 A      9.79
 7       7 A     13.0
 8       8 A      9.81
 9       9 A     14.0
10      10 A      9.87
# ℹ 20 more rows

3. Execution

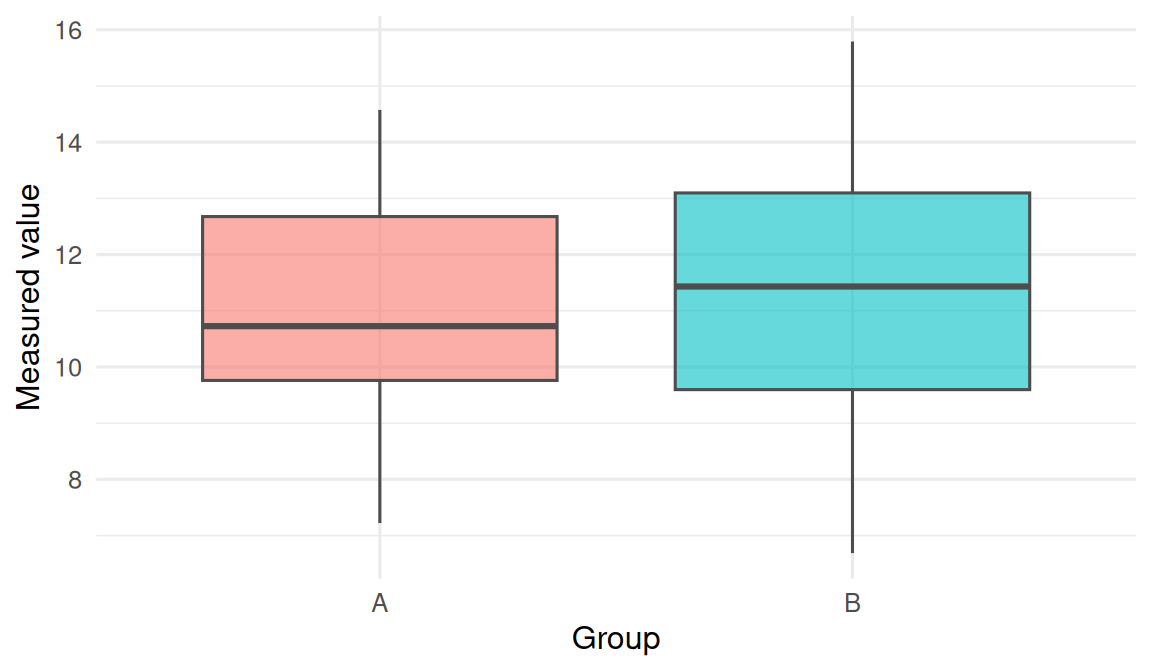

lab |>
  ggplot(aes(group, value, fill = group)) +
  geom_boxplot(alpha = 0.6, colour = "grey30") +
  labs(x = "Group", y = "Measured value") +
  theme(legend.position = "none")

The chunk above is what a reader would rerun. It must be self-contained: the data are simulated inside the document, the seed is set, and only tidyverse is required.

Project anatomy

A minimal project contains:

my-project.Rproj — the RStudio project file (an anchor for the working directory).
renv.lock — the JSON lockfile of pinned package versions.
renv/ — the project’s private package library.
An index.qmd or report .qmd — your narrative.
A code/ or R/ folder — your scripts.
A data/ folder — ideally small and read-only; never raw CSVs you edited by hand.

renv in three commands

# run once per project, after creating the .Rproj
renv::init()

# after installing or upgrading packages
renv::snapshot()

# on a new machine, after cloning the repo
renv::restore()

The renv::status() command reports drift between the library and the lockfile. In a shared project, your rule of thumb is: if status() reports anything other than “project is synchronised with the lockfile”, do not commit.

4. Check

R.version.string

[1] "R version 4.4.1 (2024-06-14)"

# A minimal package-version report we can include in any write-up.
installed_versions <- tibble(
  package = c("tidyverse", "ggplot2", "dplyr"),
  version = sapply(c("tidyverse", "ggplot2", "dplyr"),
                   function(p) as.character(packageVersion(p)))
)
installed_versions

# A tibble: 3 × 2
  package   version
  <chr>     <chr>
1 tidyverse 2.0.0
2 ggplot2   4.0.3
3 dplyr     1.2.1

The two outputs above — R version plus a small table of key package versions — are what a reviewer needs to rerun the figure. Everything larger (sessionInfo()) lives at the bottom of the document.

5. Report

A reproducible analysis is carried out in a project folder anchored by an .Rproj file, with dependencies pinned in renv.lock and narrative plus code in a Quarto document. In this lab, 30 simulated observations were generated from two normal distributions and plotted as a boxplot; the document was rendered with R R version 4.4.1 (2024-06-14) and tidyverse 2.0.0.

The important phrase is self-contained. A file that someone else can run by cloning the repository and typing quarto render is the unit of reproducibility in this course.

Emphasise during the session that renv::snapshot() is not a once-per-project command; it needs to run any time a package changes. Walk through a cold renv::restore() on a fresh clone.

Common pitfalls

Installing packages outside the project library, then wondering why renv::restore() on another machine produces different output.
Editing renv.lock by hand. Do not. Use snapshot().
Committing renv/library/ to git. The lockfile is what is tracked; the library is restored locally.
Rendering a Quarto doc that reads a file outside the project directory, then sharing only the .qmd.

Session info

sessionInfo()

R version 4.4.1 (2024-06-14)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 24.04.4 LTS

Matrix products: default
BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0

locale:
 [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
 [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
 [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
[10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C

time zone: UTC
tzcode source: system (glibc)

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] lubridate_1.9.5 forcats_1.0.1   stringr_1.6.0   dplyr_1.2.1
 [5] purrr_1.2.2     readr_2.2.0     tidyr_1.3.2     tibble_3.3.1
 [9] ggplot2_4.0.3   tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       jsonlite_2.0.0     compiler_4.4.1     tidyselect_1.2.1
 [5] scales_1.4.0       yaml_2.3.12        fastmap_1.2.0      R6_2.6.1
 [9] labeling_0.4.3     generics_0.1.4     knitr_1.51         htmlwidgets_1.6.4
[13] pillar_1.11.1      RColorBrewer_1.1-3 tzdb_0.5.0         rlang_1.2.0
[17] utf8_1.2.6         stringi_1.8.7      xfun_0.57          S7_0.2.2
[21] otel_0.2.0         timechange_0.4.0   cli_3.6.6          withr_3.0.2
[25] magrittr_2.0.5     digest_0.6.39      grid_4.4.1         hms_1.1.4
[29] lifecycle_1.0.5    vctrs_0.7.3        evaluate_1.0.5     glue_1.8.1
[33] farver_2.1.2       rmarkdown_2.31     tools_4.4.1        pkgconfig_2.0.3
[37] htmltools_0.5.9
