Getting Started with hyperspectR • hyperspectR

Installation

# Install from GitHub
# install.packages("remotes")
remotes::install_github("cttir/hyperspectR")

Loading the Package

library(hyperspectR)
#> hyperspectR v0.1.0 - Hyperspectral Imaging Analysis for Biomedical Applications

Creating and Inspecting a Cube

hyperspectR provides synthetic data generators for testing and demonstration. hs_example_cube() creates a 30x30 pixel tissue scene with 61 spectral bands spanning 430-910 nm:

cube <- hs_example_cube()
print(cube)
#>
#> ── hsi_cube ────────────────────────────────────────────────────────────────────
#> Dimensions: 30 rows x 30 cols x 61 bands
#> Wavelengths: 430-910 nm (61 bands)
#> FWHM: 25 nm (mean)
#> Mask: 900/900 valid pixels (100%)
#> Data range: [0.0198, 0.7306]
#> Metadata: camera, processing_mode, acquisition_time, region_map,
#> sto2_ground_truth, seed

Check the dimensions:

dim(cube)
#> [1] 30 30 61

The summary provides per-band statistics:

s <- summary(cube)
s$wavelength_range
#> [1] 430 910
s$data_range
#> [1] 0.01982067 0.73056093

Subsetting

You can subset cubes spatially and spectrally while preserving the class:

sub <- cube[1:15, 1:15, 1:30]
dim(sub)
#> [1] 15 15 30

Visualization

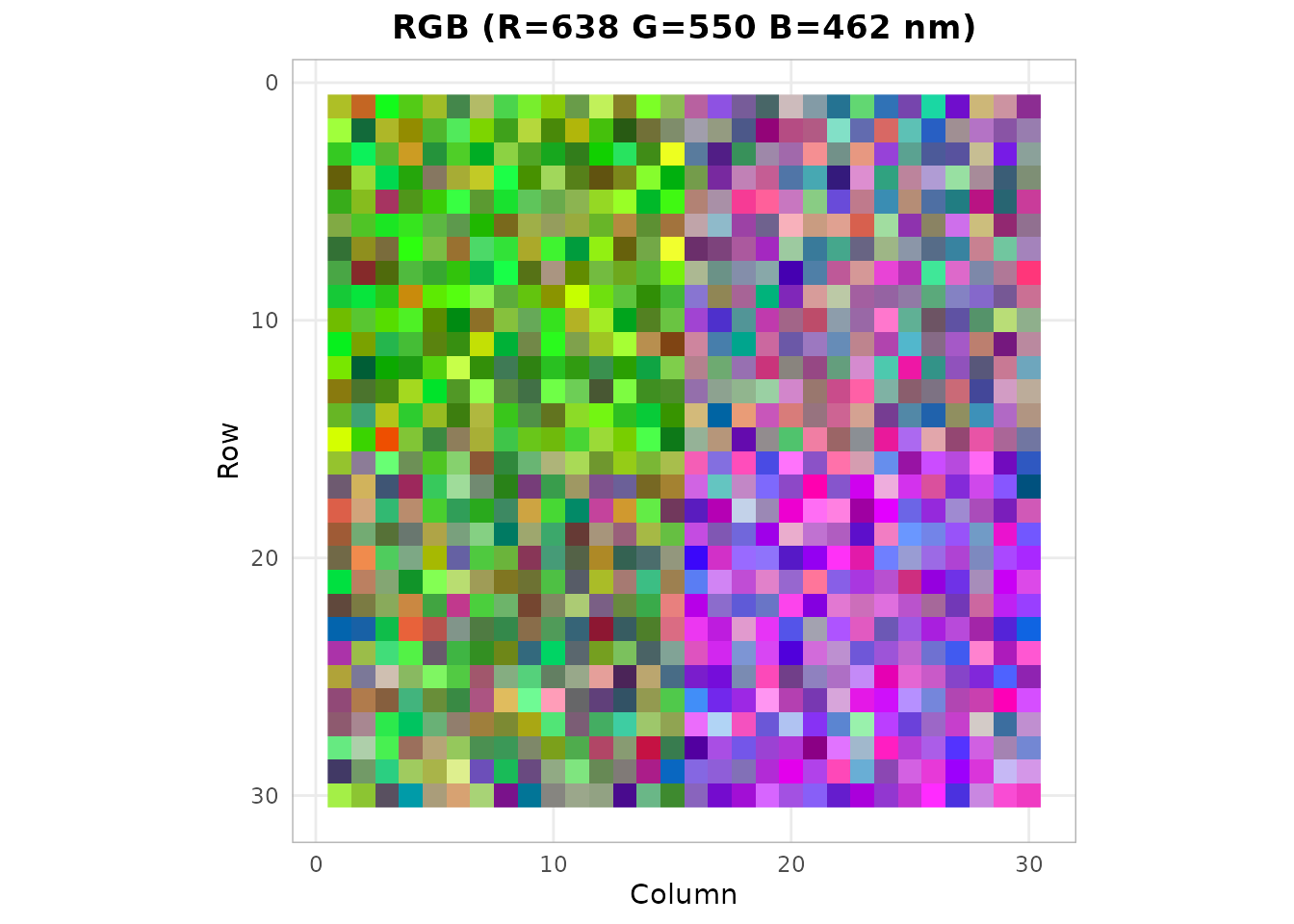

RGB Composite

ggplot2::autoplot(cube, type = "rgb")

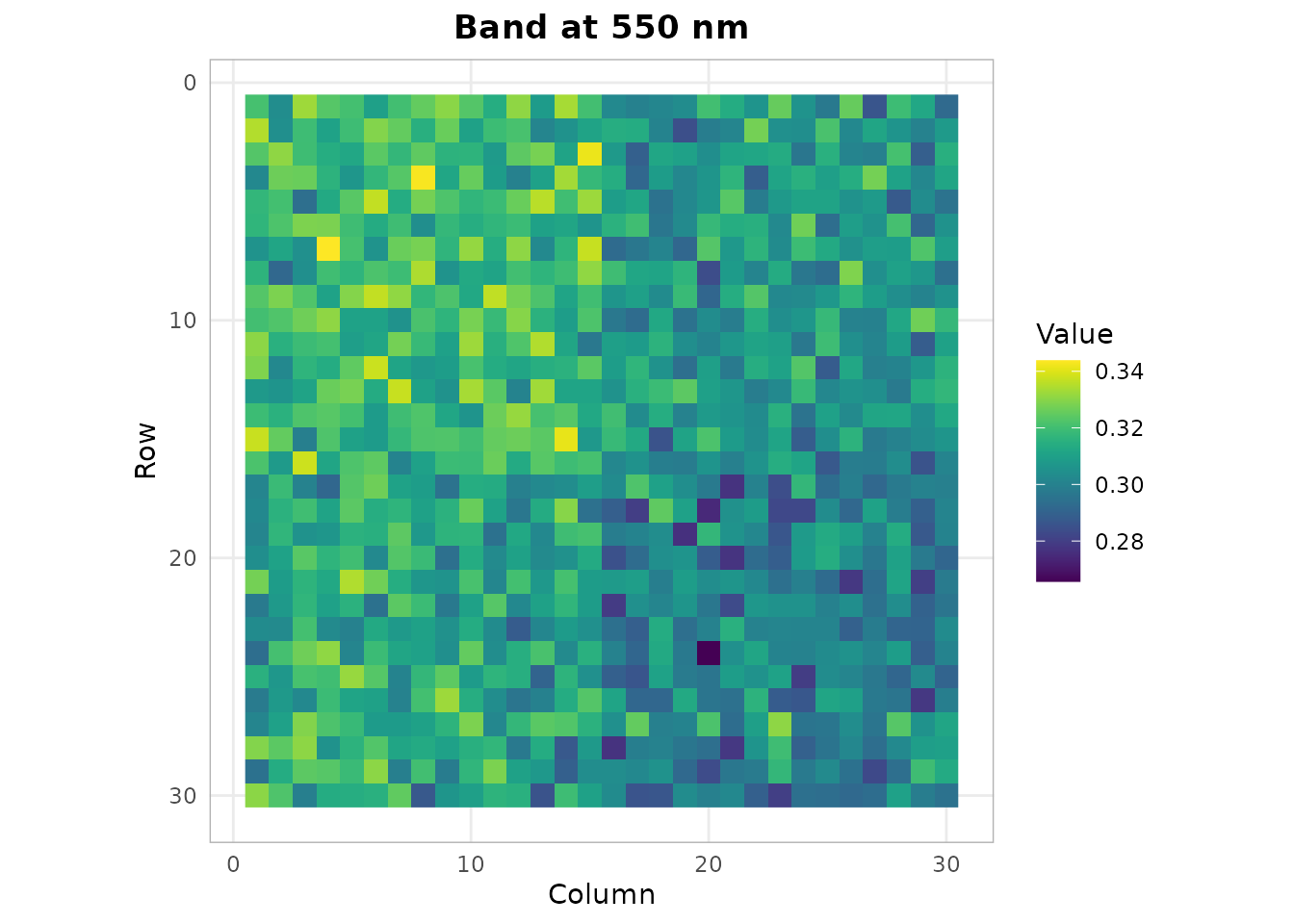

Single Band Image

hs_plot_image(cube, wavelength = 550)

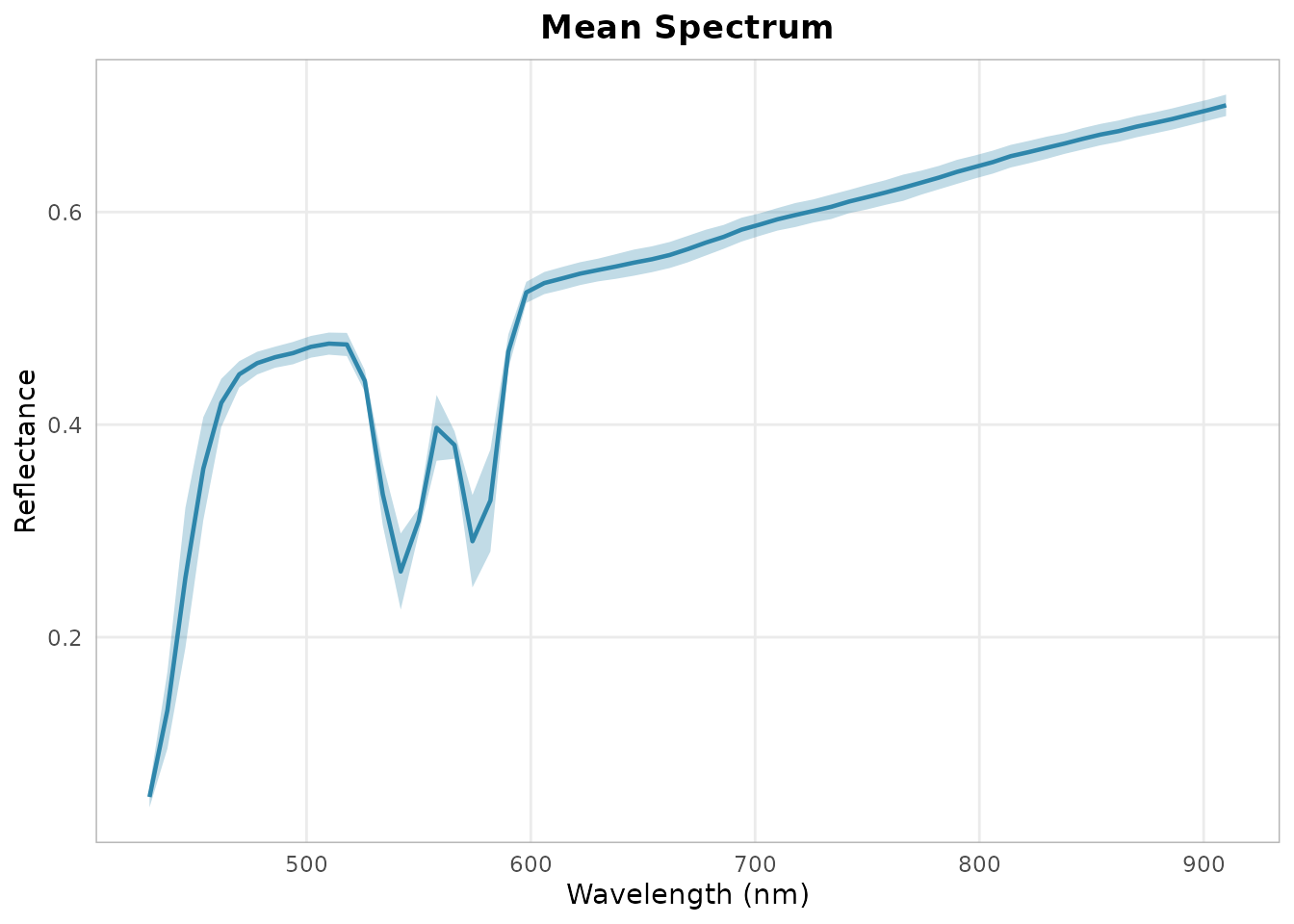

Mean Spectrum

hs_plot_spectra(cube, pixels = "mean", show_sd = TRUE)

Computing Tissue Indices

The package implements clinical tissue indices used in surgical HSI:

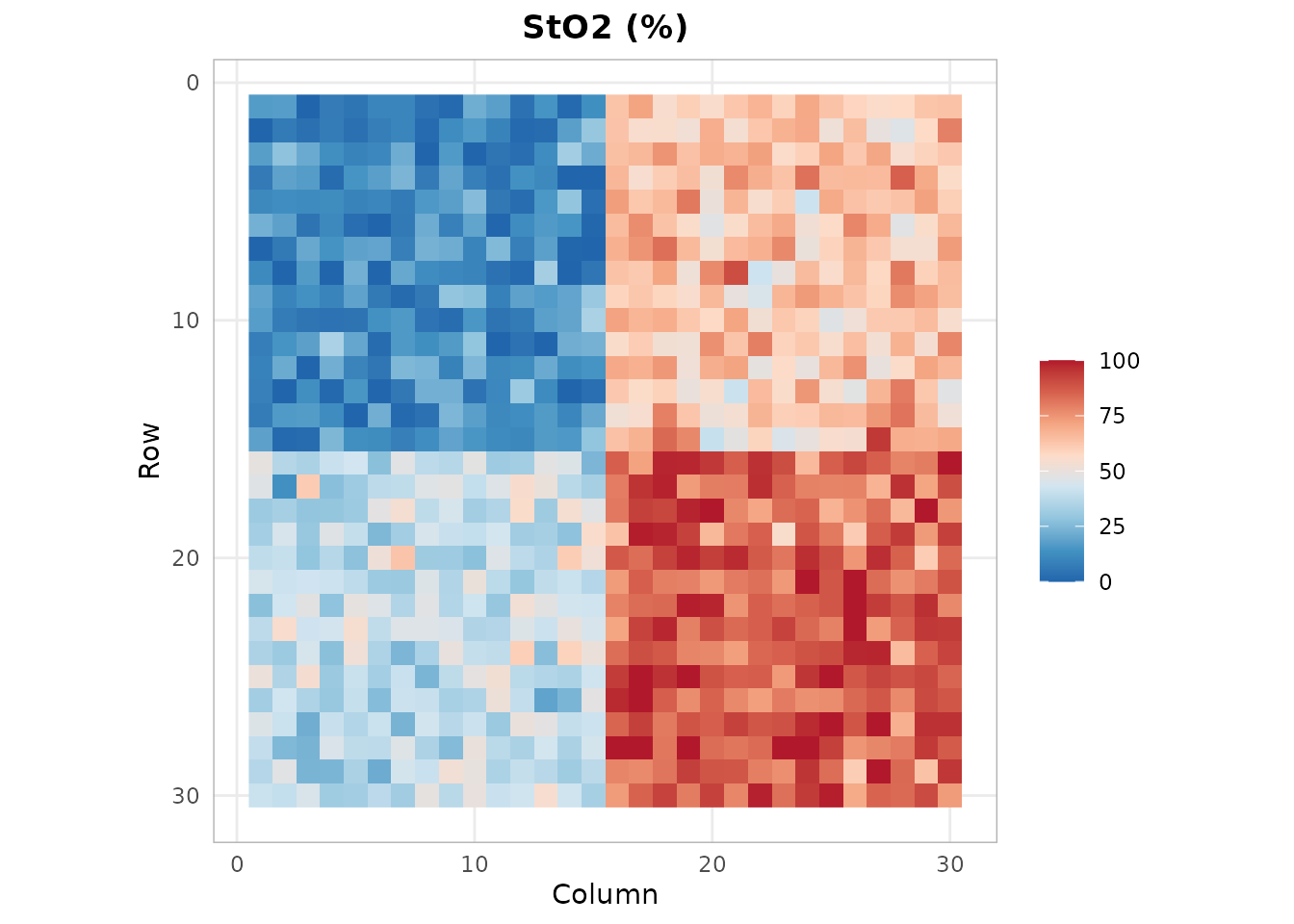

sto2 <- hs_sto2(cube)
hs_plot_index(sto2, title = "StO2 (%)", palette = "sto2")

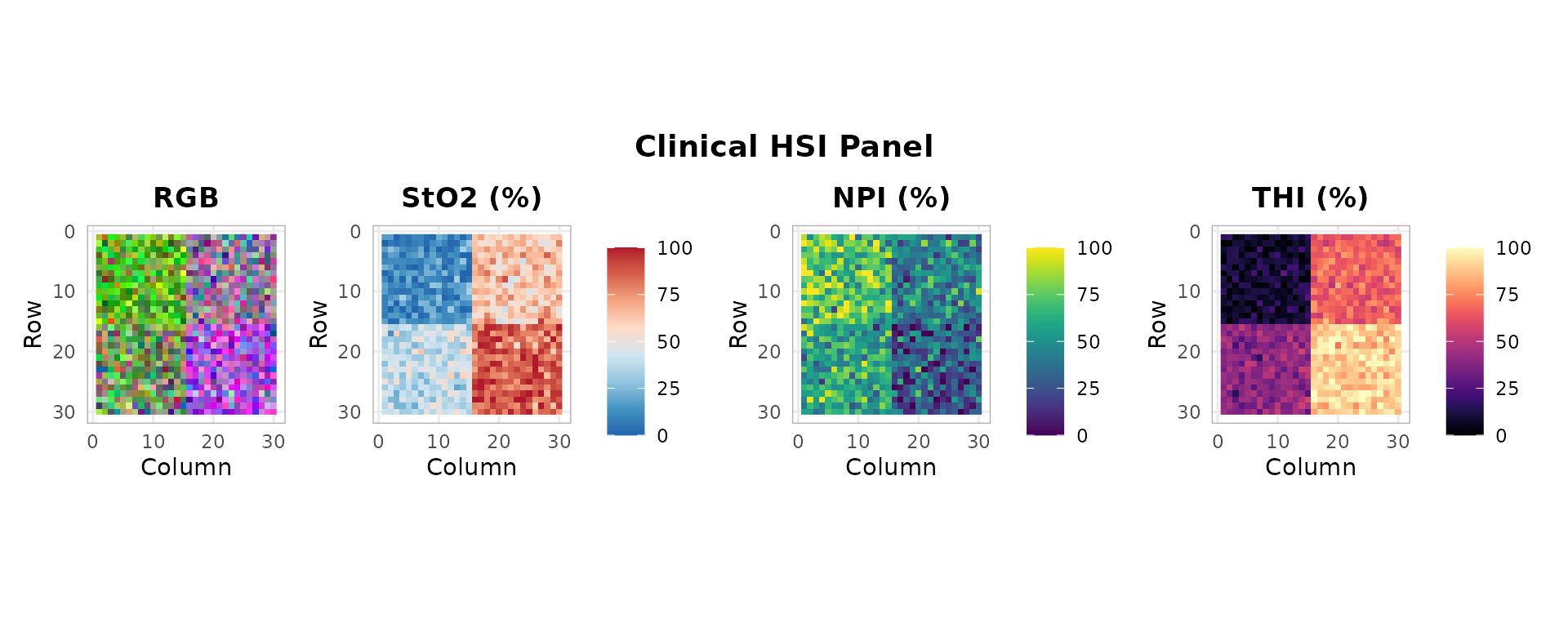

Clinical Panel Display

hs_plot_clinical(cube, indices = c("sto2", "npi", "thi"))

Interactive Exploration

Launch the Shiny app for interactive analysis:

hs_run_app(cube)

Next Steps

Read real data with hs_read_envi() or hs_read_cube()
Preprocess with hs_smooth(), hs_snv(), hs_msc()
Perform PCA with hs_pca() or MNF with hs_mnf()
Classify with hs_sam() or fit chromophores with hs_beer_lambert()

Use of LLM tools

Portions of this package were prepared with assistance from large language model tooling for narrowly defined, non-authorial tasks: copyediting, prose smoothing, Markdown/LaTeX formatting, scaffolding of boilerplate files (CI configs, build scripts), code refactoring. The tools used were Chat AI, the LLM service of KISSKI (GWDG), and a self-hosted Mistral Small (24B, Apache-2.0) run locally via Ollama and the ollamar R package — local inference only, with no data sent to third parties for the self-hosted model.

All scientific claims, methodological choices, analyses, interpretations, and conclusions are the author’s own. No LLM-generated text was incorporated without review and revision, and every reference was verified against its DOI, arXiv ID, or ISBN.
